HELLO EVERY ONE ,

This is poco x2 mobile.Customer brought this mobile to our shop.Technician asked the customer what is the mobile problem.The customer said that the mobile is dead. The technician said that he will check the mobile and repair it.

Now let's check this mobile step by step :

Krish Mobile Training Institute

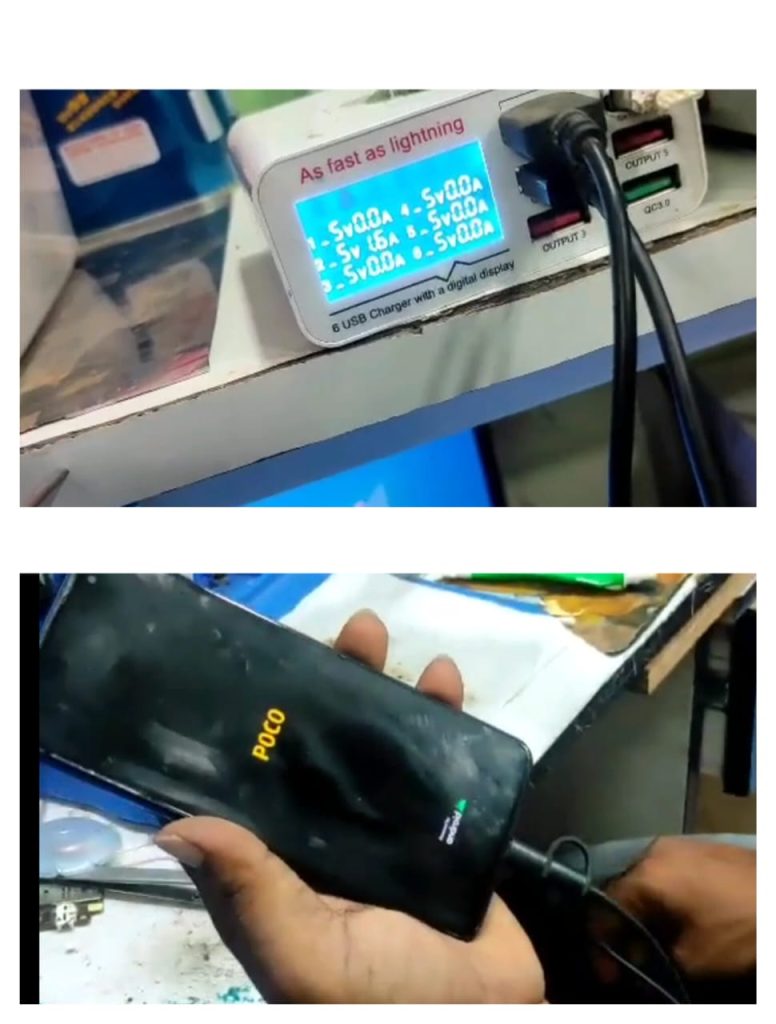

• If you connect the 6 in 1 charger to this mobile, it will take 0.1 milliampere .
• When connected to the computer, the port does not take anything
• If port is taken then the solution is different.

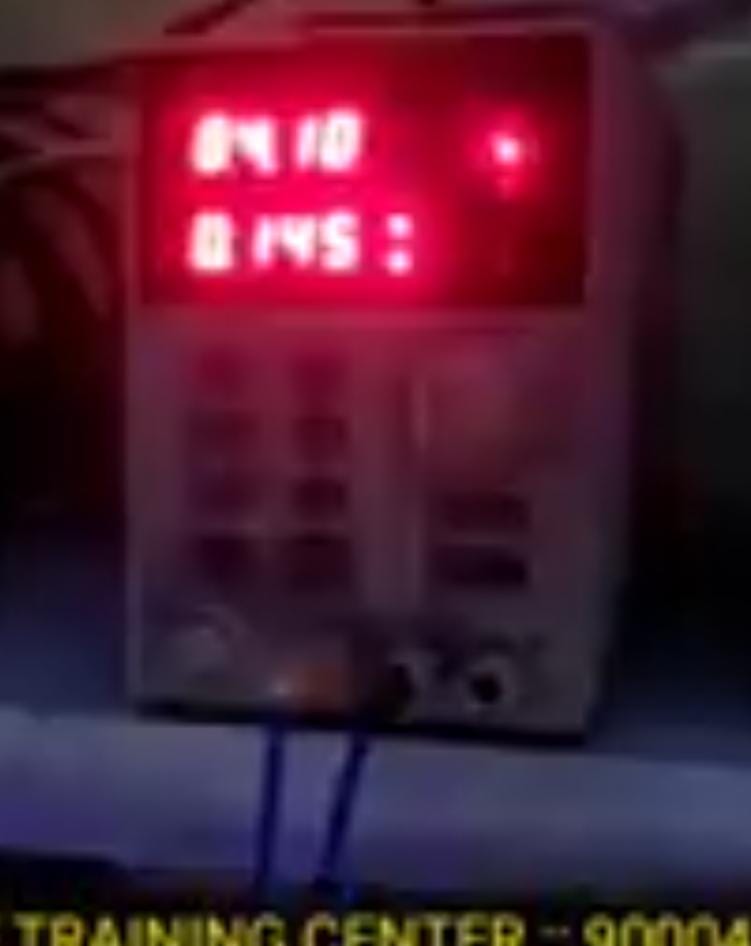

• If the connected to the dc power Supply and the trigger is pressed, it will take a reading of 0.145 and it will struck on.

• For these reasons what we know is that the cpu was shot.
• If cpu is good, it will take a port in the computer.
• Remove the mother board from the mobile.
• If you look at the mother board, this mobile water may have been damaged, otherwise another technician may have added Flex Paste.
• It took a little bit of rustling near cpu.

Let's solve this problem in mobile :

• Let’s reball the cpu and make it refix.
• First, cut the glue around the cpu.
• Add the flex paste and slowly lift the cpu with the lifting blade while slowly heating it with the Blower.

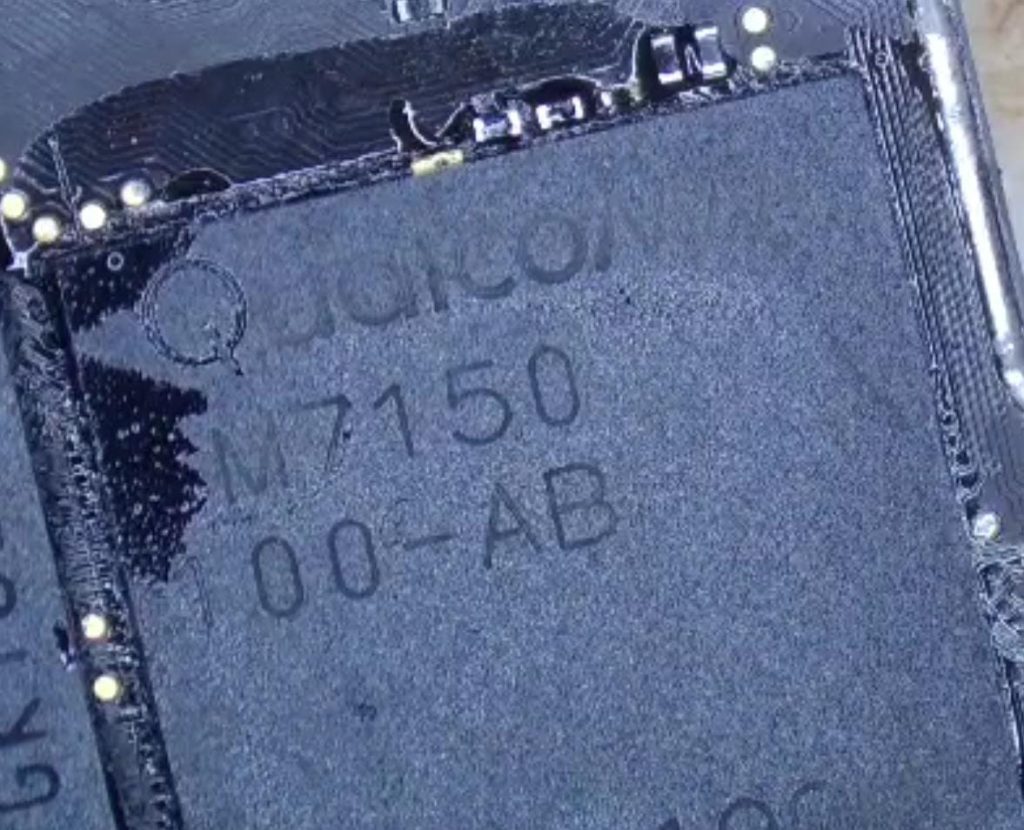

• This is qualcomm cpu.

If you want to Know More Information then Click on this Link :-www.youtube.com/@krishmobiletraininginstitute.

• After lifting the cpu, the led should be cleaned with a soldering iron on the ground.
• Then show the heat and clean the black paste with the lifting blade of the cpu.
• Add flex paste and clean it with a wick.

• Now let’s clean the cpu.
• cpu should be placed on the PCB board.
• Apply flex paste on top of the cpu and clean it slowly with a lifting blade while showing heat.
• Then clean with a wick.
• Now we have to rebel cpu.

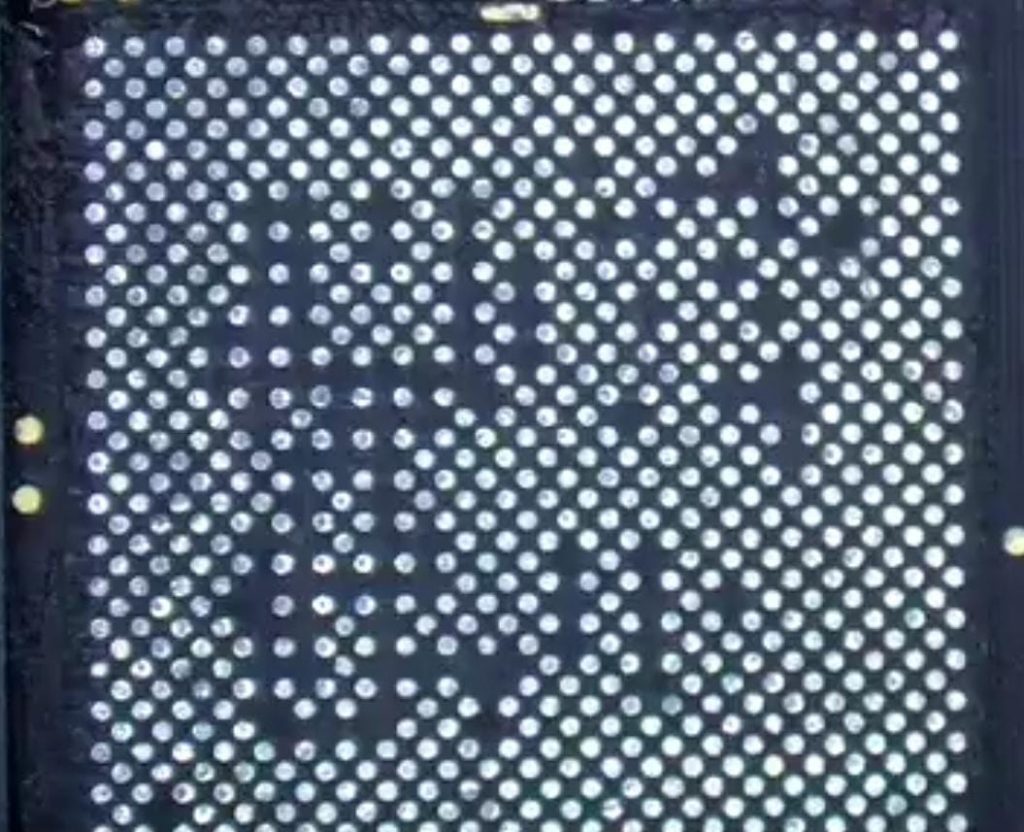

• We are taking the cpu stencil to reball the cpu.
• Keep the cpu stencil on the cpu without moving.
• Apply some ppd paste on the stencil and heat it with a blower.

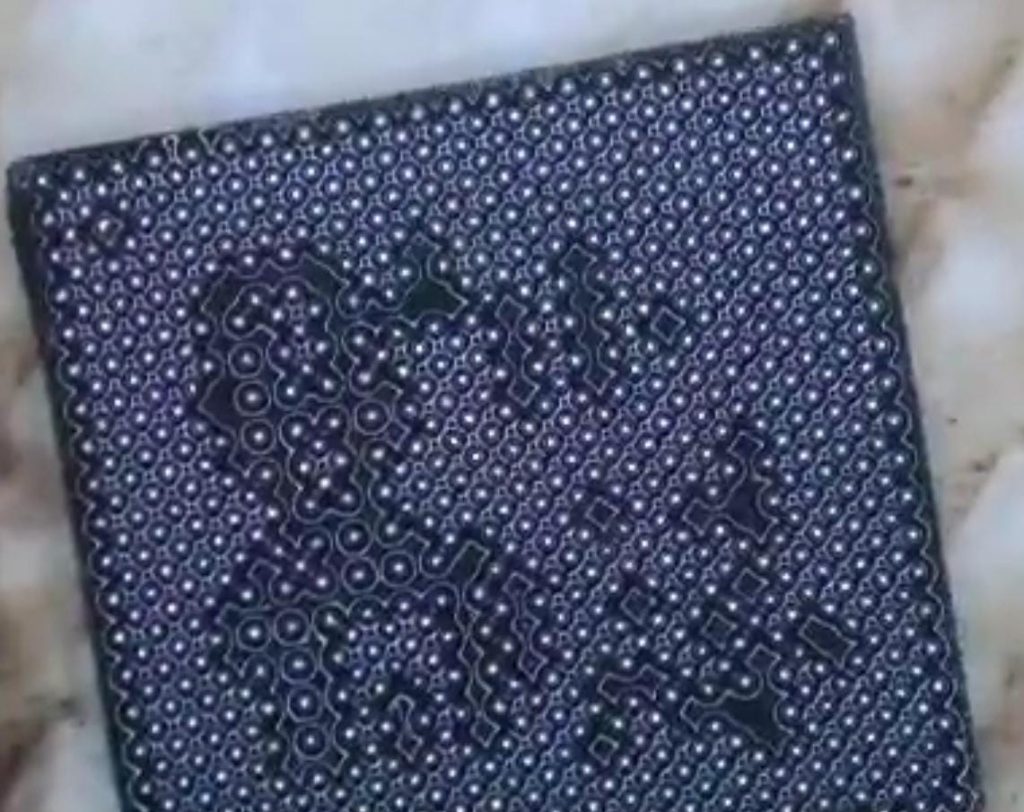

• After confirming that the reball is correct, the stencil should be carefully removed.

• Now let’s fix the cpu to the board.
• After doing the refix, attach the mobile to the mother board.
• After attaching, connect the charger to the mobile and check whether the mobile turns on.

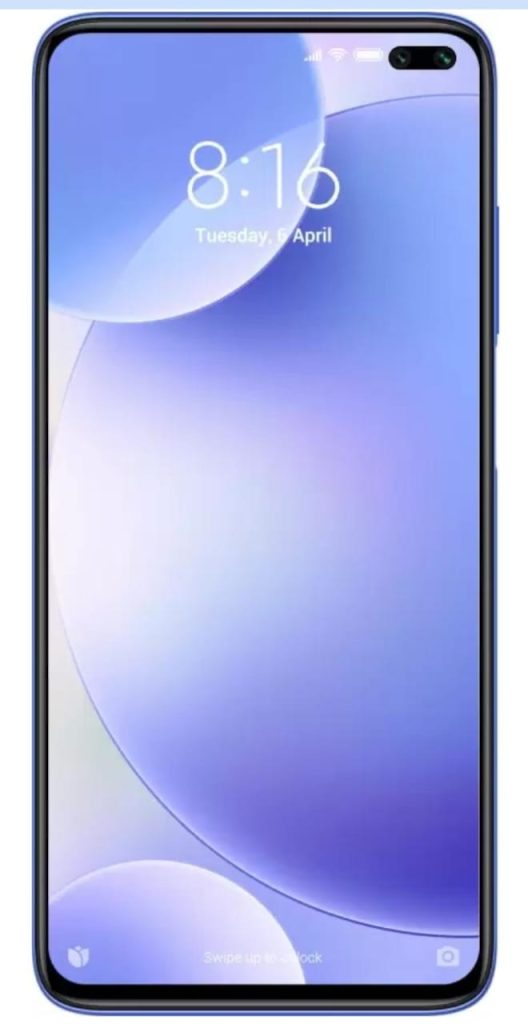

• Mobile turned on successfully.
• problem is solved .
• customer is happy.

video link is given in the below :

thank you by team k.m.t.
